Soluble Salt Meter Kit ISO 8502-9, NACE SP0508-2008
SKU HESSM
€1,150.00
Excl. Shipping
Product Details
Weight:
1.50 kg
SSM Kit - Soluble Salt Meter
The SSM is developed as a direct replacement for the Bresle patch inspection method (ISO 8502-6).
It has been validated in accordance with NACE standard SP0508-2008 and has demonstrated equivalence to ISO 8502-9 (the field method for the conductometric determination of soluble salts).
Technical specifications:
Standards
:
- Equivalent to ISO Standard 8502-9 (Field method for the conductometric determination of water-soluble salts; The Bresle method) in accordance with NACE SP0508-2008.
- Water Injection Method: Automated, with simple press of fixed volume dispenser
- Dose: 3± 0.05 ml
- Measurement Process Steps: 5
- Total Process Time: 60 seconds (Measurement to Measurement)
- Measurement Range: 0-100 µS/cm
- Resolution: 1 µS/cm
- Measurement Accuracy: ± 3 µS/cm
- Surface Temperature Range: 5 - 50 °C (41 - 122 °F)
- Temperature probe accuracy: ± 0,3 °C (± 0,54 °F)
Diameter of curvature:
- Standard measuring head: >= 44 inch / 1100mm (included)
- Measuring head 1: 26 <=> 42 inch / 650 <=> 1050 mm (optional)
- Measuring head 2: 14 <=> 24 inch / 350 <=> 600 mm (optional)
- Measuring head 3: 8 <=> 12 inch / 200 <=> 300 mm (optional)
- Readout: µS/cm or mg/m2
- Measurement Area: 1250 mm2 (circular) fixed footprint
- Attachment Method: Magnetic with silicone seal
- Internal Memory: Holds up to 1000 measurements (10 batches of up to 100 measurements each)
- Connectivity: via USB with PC or laptop
- Power Supply: Lithium-ion rechargeable battery
- IP Rating: IP54
- Dimensions(Instrument only): 21 x 10 x 8 cm
- Weight (Instrument only): 780 gr

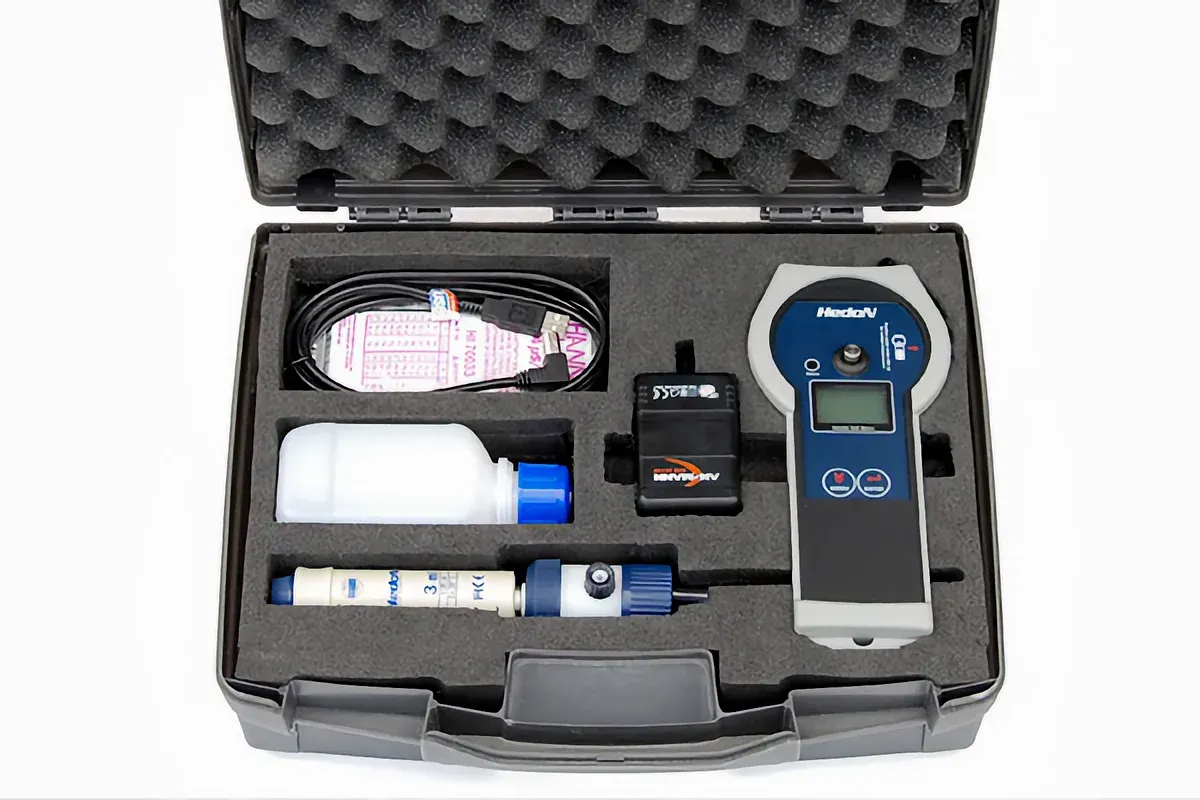

Scope of delivery:
- Soluble Salt Meter kit
- Standard measuring head >= 44 inch / 1100mm
- Additional measuring heads for curved surfaces (optional).
- 3ml fixed volume fluid dispenser
- Container for deionised water
- Flexible plastic tubing to interconnect SSM and dispenser
- Universal AC adapter to charge the Li-ion battery of the SSM
- CD with SSMlink software and manual
- USB connection cable
- 4 sachets of 84 µS/cm validation fluid
- Syringe to inject validation fluid into the SSM
- Carrying case
- 3 spare seals
50 measurements included!
Watch the SSM Kit in action in this video:
