For duplex coating systems applied to steel substrates.

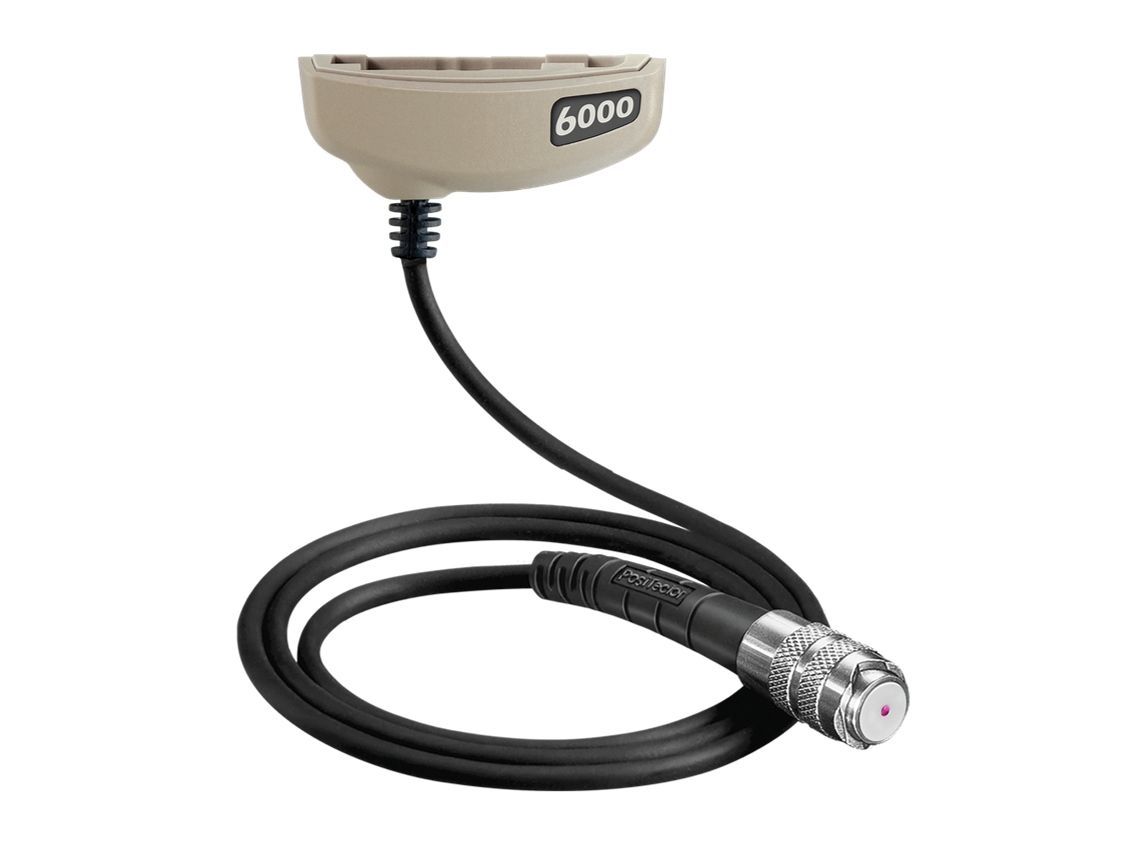

FNDS probe for measuring the individual thicknesses of both the paint and the zinc layers in a duplex coating system with a single reading
Measuring range 0 - 1.500 µm
Compatible with all PosiTector Advanced and PosiTector Standard gage bodies with a color display. Simple gage update
required.
Min. zinc coating thickness: 13 µm
Tolerance paint layer: ± 1 µm and 1% up to 49,9 µm ± 2 µm and 1% from 50,0 µm
Tolerance zinc layer : ± 2 µm and 1% up to 49,9 µm ± 4 µm and 1% from 50,0 µm
Scope of delivery:
Probe module with cable
Control shims
Manufacturercalibration certificate
Two (2) years warranty
Watch the video for an in-depth look at all the cool features of the new PosiTector 6000
