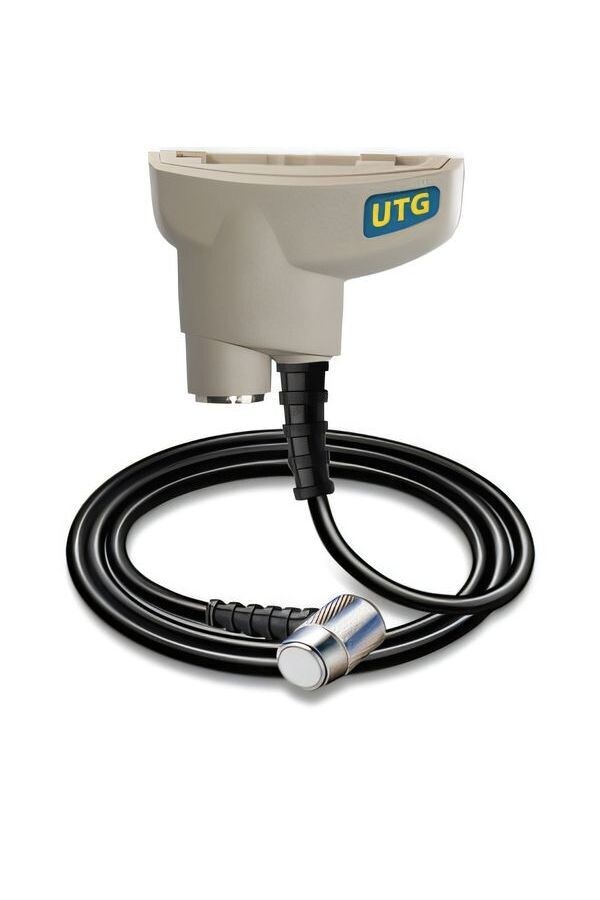

DeFelsko PosiTector UTG M Probe Wall Thickness, Single Echo: 2.5 to 125.00 mm; Multi Echo: 2.5 to 60.00 mm

DeFelsko PosiTector UTG M Probe Wall Thickness for DeFelsko PosiTector Gage Body

A DeFelsko PosiTector Advanced or Standard Gage Body is mandatory for this probe to work

Measures the wall thickness of materials such as steel, plastic and more. Thru-Paint Capability!

• Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side
• DeFelsko PosiTector UTG M Multi-Echo probe
• Thru-Paint Capability
• Probe Type: 5 MHz Contact
• Measurement Mode: Multi Echo
• 5 MHz dual element transducer with wear resistant PEEK probe tip
• Automatic V-Path compensation for thin materials
• Measurement Range: Single Echo: 0.100" to 5.000" (2.5 to 125.00 mm)
• Measurement Range: Multi Echo: 0.100" to 2.500" (2.5 to 60.00 mm)
• Measurement Rate: Normal: 4 Measurements/Sec.
• Measurement Rate: Scan: 4 Measurements/Sec.
• Resolution: 0.001" (0,01 mm)
• Accuracy: ±0.001"(±0.03 mm)
• Dimensions: 30 x 13 mm

PosiTector UTG Literature (PDF):

• PosiTector UTG

Scope of delivery:

• Multi-Echo UTG probe
• Manufacturer calibration certificate
• Couplant (Ultrasonic Gel)
• Two (2) year warranty
• Instruction manual

In the following Video the older model is used, the process stayed the same.

Video Description

A live demonstration of the PosiTector UTG Ultrasonic Thickness Gage Multiple-Echo/Thru-Paint model. This allows the PosiTector UTG to measure the metal thickness of a painted structure without having to remove the coating.
