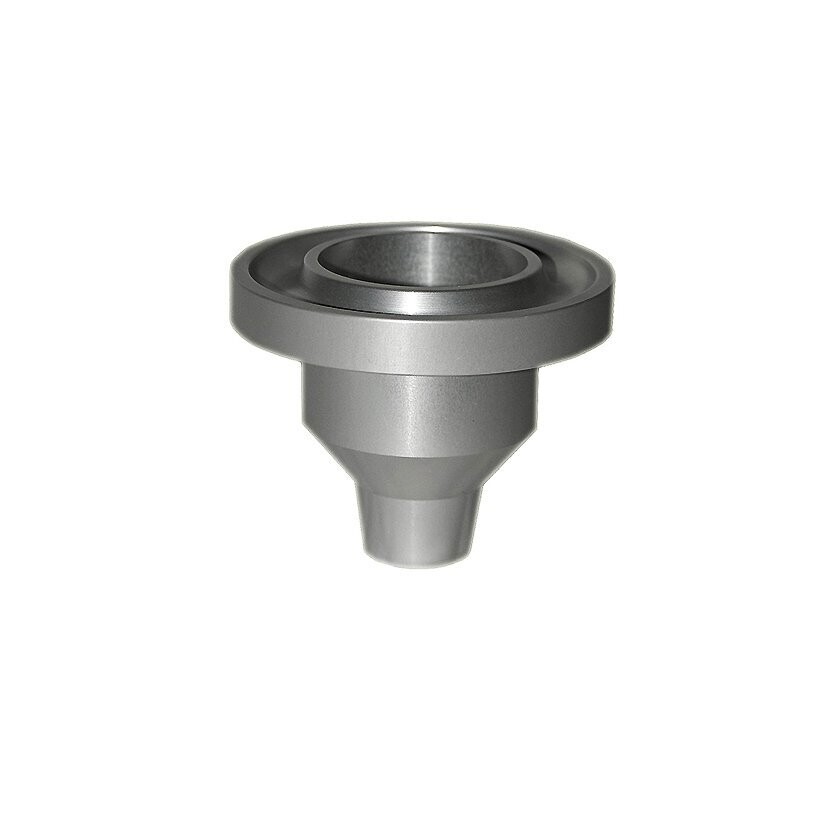

mtv Flow Cup Viscometer DIN 4 Based on DIN 53211

SKU MTABDIN4
€134.00
Excl. Shipping
Product Details
Weight: 0.35 kg

Flow Cup Viscometer with stainless steel nozzle 4 mm diameter

Based on DIN 53211

When measuring viscosity with an Flow Cup Viscometer, the liquid is filled into a cup which tapers at the bottom into a hole (nozzle) with a precisely defined diameter. Based on the cup volume, the nozzle diameter and the measured time for the liquid to flow out, its viscosity can be determined. This method is particularly common for testing paints, varnishes, resins and liquids with similar viscosities.

Viscosity measurement with a Flow Cup Viscometer is favored by its quick and easy handling, the inexpensive design of the measuring instrument and the possibility of performing in-process measurements.


Measurement of viscosity
Viscosity describes the internal friction of a liquid. It is therefore relevant wherever liquids are conveyed, pumped, spread or sprayed. In addition, a rheological test can be used to make statements about how a paint behaves after application and what surface structure is formed when it dries.


Flow Cup Viscometer

A Flow Cup Viscometer is a container with a hole of a defined diameter. The hole is initially closed and the container is filled full of liquid. As soon as the hole is opened and the liquid runs out, the time measurement starts. The time until the stream of liquid stops flowing out is measured.

  • Based on DIN 53211
  • Anodized aluminum
  • Stainless steel nozzle 4 mm diameter
  • Measuring range 90 - 682 mm²/s for flow times in the range of 20 - 200 s
  • Manufacturer test certificate not included, available as an accessory

Scope of delivery:

  • Flow cup
  • Storage box
