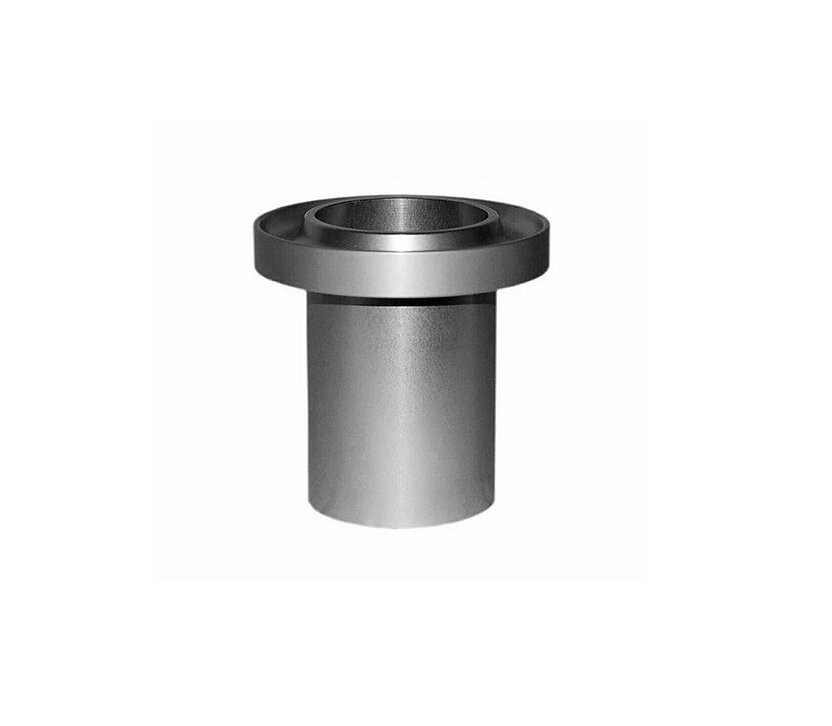

mtv Flow Cup Viscometer ISO 4 conform to ISO 2431
SKU MTABISO4
€154.00
Excl. Shipping
Product Details
Weight:0.44 kg
When measuring viscosity with an Flow Cup Viscometer, the liquid is filled into a cup which tapers at the bottom into a hole (nozzle) with a precisely defined diameter. Based on the cup volume, the nozzle diameter and the measured time for the liquid to flow out, its viscosity can be determined. This method is particularly common for testing paints, varnishes, resins and liquids with similar viscosities.
Viscosity measurement with a Flow Cup Viscometer
is favored by its quick and easy handling, the inexpensive design of the measuring instrument and the possibility of performing in-process measurements.
Measurement of viscosity
Viscosity describes the internal friction of a liquid. It is therefore relevant wherever liquids are conveyed, pumped, spread or sprayed. In addition, a rheological test can be used to make statements about how a paint behaves after application and what surface structure is formed when it dries.
Flow Cup Viscometer
A Flow Cup Viscometer is a container with a hole of a defined diameter. The hole is initially closed and the container is filled full of liquid. As soon as the hole is opened and the liquid runs out, the time measurement starts. The time until the stream of liquid stops flowing out is measured.
Conform to ISO 2431
Anodized aluminum
Stainless steel nozzle 4 mm diameter
Viscosity range: 35 - 135 mm²/s (for flow times in the range 30 - 100)
Calibration certificate available at an extra charge
Scope of delivery:
Flow cup
Storage box
